Adhesive film, splinter optics (embossed)

  • glueless
  • Indoor assembly
Durchsicht mit geprägter Adhäsionsfolie in Splitteroptik
Montagevideo starten
Geprägte Adhäsionsfolie in Splitteroptik
Geometry Linear metre
Rectangle
Square
Pentagon with slope
Rectangle with bevel
Rectangle with two slopes
symmetric trapezoid
right triangle
symmetrical triangle
Gable window
Rectangle with segmental arch
Rectangle with basket arch
Rectangle with semicircle
Quarter circle
Circle
Semicircle
Circle section
Oval / Ellipse
Available in the dimensions:
min. 5,0 x 5,0 cm
max. 118 x 5.000,0 cm
Width [cm]
Height [cm]
Cutting possible on request
Unfortunately, your desired size cannot be ordered via the online shop. However, we can still offer you the dimensions. Please ask our customer service at info@velken.shop.
from €1.00

Price per m² from: €37.82 Price per m²: €34.04 Price per m²: €37.82 incl. VAT plus shipping costs. Item no. 281560

Order accessories directly

Facilitates the installation of window films immensely! The films can be positioned on the glass without sticking. The concentrate is sufficient for an area of approx. 6m². The appropriate quantity is offered in the shopping basket.

Transfer concentrate
€3.49

This assembly set is suitable for smaller foil assemblies of up to 6m². In the set price you save over 15% compared to the individual components.

Mounting set
€8.95

This assembly set is ideal for medium-sized film installations of 5-10 m². With this bundle you save almost 23% compared to the individual components.

Assembly set professional
€14.95

Delivery time approx. 1-4 days

CNC cutting accurate to the millimetre

free assembly tool

Properties of this film
Protection from
Look
Privacy screen
medium
Light transmission
high
Transparency
medium
Design
Splitter
Colour
transparent
Liability
glueless
Mounting side
Indoor assembly
Questionst?
Start WhatsApp chat
The detailed, embossed splintered look of this removable window film is characterised by areas...

The detailed, embossed splintered look of this removable window film is characterised by areas that are subdivided into different coarse sections, which vary from a finely granular fluted design to smooth surfaces. Depending on the incidence of light, this privacy film decorates your home window in different glass looks. The advantage is that the adhesive film can be applied repeatedly and removed easily without leaving any residue.

Privacy function

Bodies directly behind the film can be seen dimly. If the distance between the film and the object is increased, perception becomes very blurred from a distance of approx. 20-30 cm and identification of furnishings or persons becomes almost impossible.

Light transmission

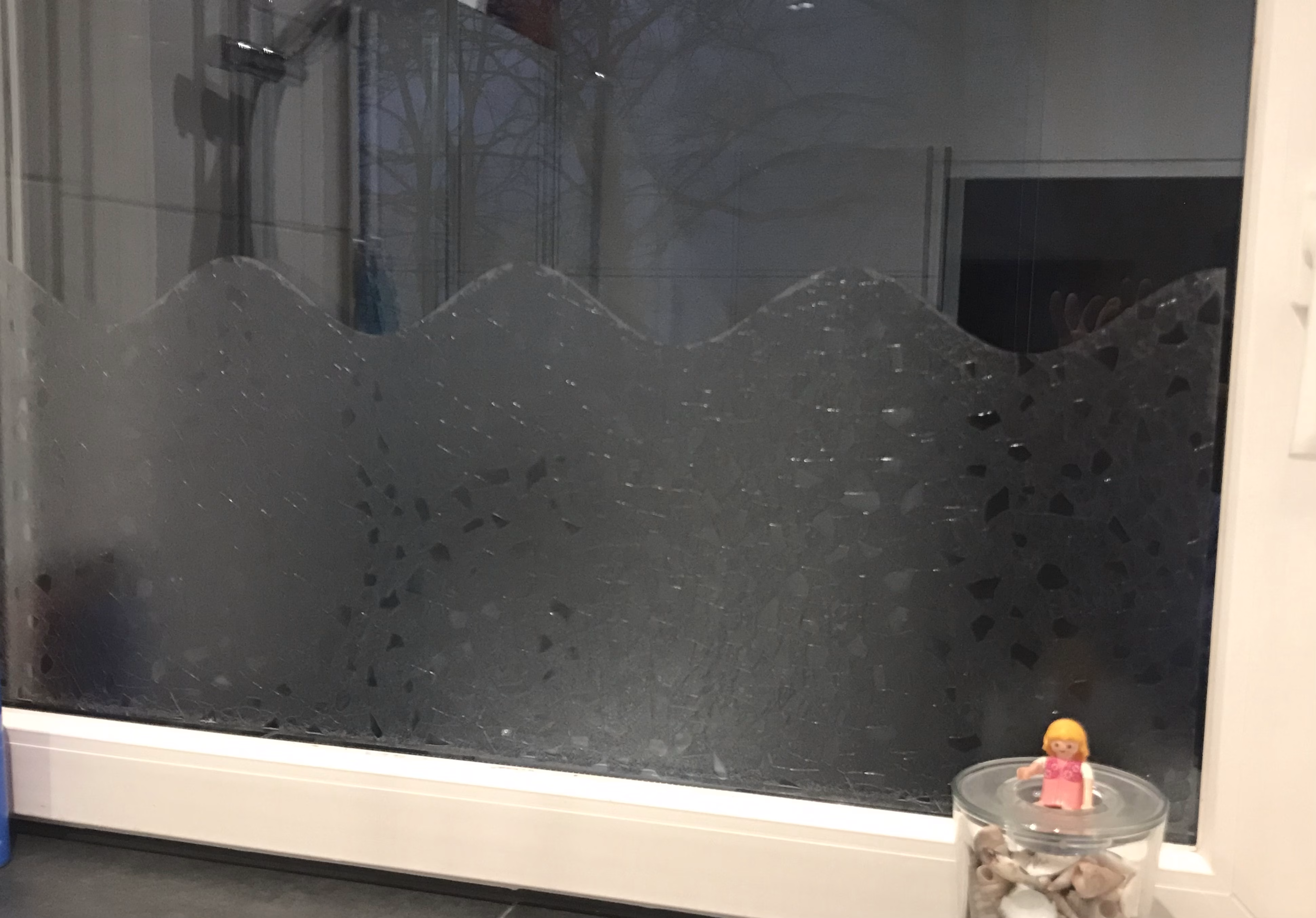

Picture explanation: The article pictures show an application inside a building. Daylight no longer reaches the film directly, which makes the overall appearance somewhat darker.

The scratch-resistant surface of the self-adhesive film facilitates cleaning with standard glass cleaners.

Included in delivery

You should definitely order the transfer concentrate, art. no. 020010 additionally. It makes the installation easier and leads to a better result. Alternatively, you can also use a pH-neutral cleaner. This must be pH-neutral to prevent streaks from forming together with the film adhesive!

Any offcuts are not included in the scope of delivery.

Technical data and information at a glance...

Manufacturer's guarantee

The adhesive privacy film is a composite adhesive film made of PET and soft PVC. It is dimensionally stable with a high UV resistance.

The durability and adhesive strength of the films for interior installation are up to 10 years, depending on various factors.

Technical data
Material PET and soft PVC
Film thickness approx. 110 µm
Adhesive static (without adhesive)
Temperature range -10° C to + 50° C

Mounting recommendation

Based on technical data and extensive experience, we can recommend mounting on the following vertically installed glass types:

Glass typeNumber of
panes
mainly
installed
U-value
W/(m²K)
Interior
installation
Single glazing 1 (-fold) until 1978 5,7 - 5,8 yes
Double glazing 2 (-fold)
2 (-fold)
3 (-fold)
1978 - 1994
1995 - Today
1978 - 1994
3.0 - 3.4
1.2 - 2.5
2.1 - 2.4
yes
yes
yes
Thermal insulation glazing 2 (-fold)
3 (-fold)
1978 - 1994
1995 - Today
1.7 - 2.1
0.4 - 1.4
yes
yes
Solar control glazing 2 (-fold)
2 (-fold)
3 (-fold)
1978 - 1994
1995 - Today
1995 - Today
1.4 - 2.0
1.0 - 2.5
0.5 - 1.3
yes
yes
yes

These recommendations may still result in glass breakage due to various factors at the installation site. According to our AGB, §10 paragraph 3 we do not accept any liability for this.

Answers to the most frequently asked questions...

General questions

Can I get a free foil sample?

Of course, please click on this link to access the corresponding order form. You are welcome to add to the list of items if you wish. There are no costs for you!

Will you also cut the film for me?

We cut each film to the exact millimetre according to the dimensions you enter. The cutting is free of charge. You can find detailed instructions on how to measure your panes here.

Alternatively, you can also cut your film by hand with a cutter knife. However, this requires a little manual skill, so you are usually better off using our free service.

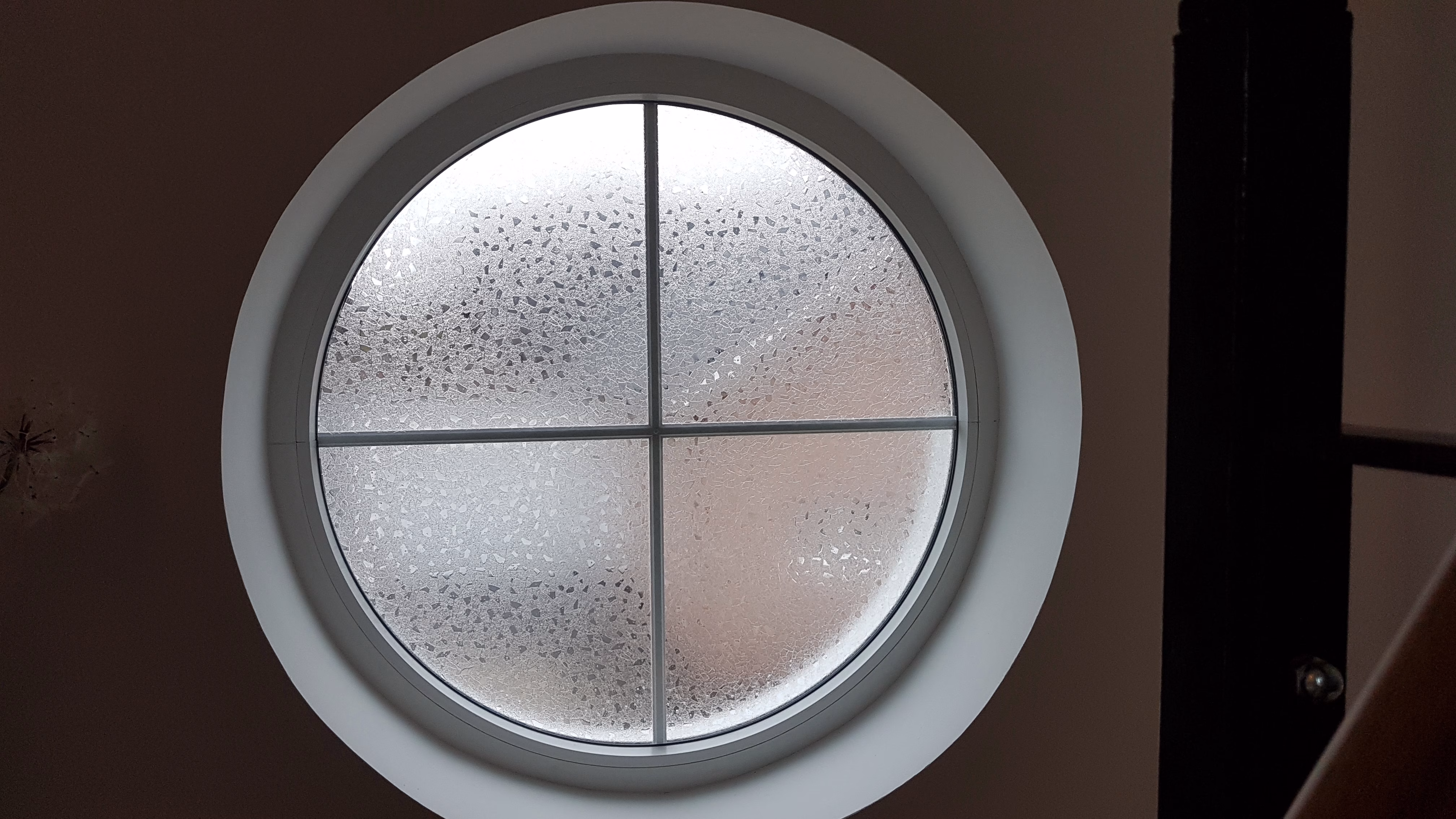

Can you also cut a round blank or other geometry?

In general, almost all 2D shapes can be produced. Many geometries (e.g. triangles, trapezoids, circles) can be ordered directly via the online shop. To do so, please click on the orange rectangle to the right of the article image. You can then choose between many different shapes.

For shapes that are not specified, please send us a small sketch (photo) in which you specify the side lengths, radii or angles. Please contact us for this purpose.

Does the film also adhere to surfaces other than glass?

The window film adheres to all surfaces that are approximately as smooth as glass. When applying the film to plastic, please bear in mind that the adhesive may bond with the plastic, making it impossible to remove the film cleanly later.

How can I clean my window pane with the film in place?

You can keep your window pane clean as usual. The film should not be rubbed with sharp-edged objects (e.g. a brush).
You can find more information in our guide General care instructions for window films.

Can the film be removed without leaving any residue?

All window films can be removed without leaving any residue and without damaging the glass surface!
Below you will find detailed instructions on how to remove old window films.

Can you also print on films?

Unfortunately, we do not currently offer foil printing and do not have any partner companies with whom we can realise foil printing.

How to mount this film on the window...
Start assembly video
Installation video for window films. Click on the picture to start.

Assembly instructions for Adhesive films (glueless)

You will need the following items

Installation tips

  • Two people should carry out the installation!
  • Do not install any film at temperatures on the installation side below +6° C.
  1. Fill the spray bottle with 0.5 litres of water and add the transfer concentrate (30 ml) (enough for approx. 6 to 7 m² of glass surface).
  2. Thoroughly clean the glass with commercial or our glass cleaner!
    Remove all sticky particles (e.g. paint or fly dirt) preferably with the Glass scraper blade. No dirt residues should remain on the glass!
  3. The sandblasting foil consists of the mostly white backing paper and the actual sandblasting foil.
    Now place the sandblasting foil with the view side down on the glass pane or similar. You are now looking at the back of the film.
    Then carefully and slowly peel off the backing paper at as shallow an angle as possible until it is about halfway along the entire length of the film. Cut the backing paper and stick it back onto the sandblasting film with a gap of about 2 cm to the remaining backing paper.
  4. Now hold the Adhesive foils in place while the 2nd person from the corner and at the same time spray the now exposed back of the ordered sun protection film with the liquid.
  5. Afterwards, the glass pane (surface to be pasted) must be sprayed with the liquid. Do not be sparing with the liquid, film and pane should be well wet.
  6. Place the Adhesive foils on the glass, the film should slide back and forth well, otherwise spray the glass again.
  7. Now spray the other side of the Adhesive foils as well, this will make it easier for you to work with the mounting squeegee.
  8. Now press the liquid out evenly with the mounting squeegee from the centre to the right and to the left. Make sure that there is no residual water left under the film! Repeat this procedure several times to remove even invisible water residues. When doing this, wrap the supplied squeegee with a paper towel to avoid any scratches.
  9. Carefully wipe the edges and the foil with a soft cloth. If necessary, press the edges again with the mounting squeegee.
  10. Now let the Adhesive foils dry for three days without touching it.
  11. Wait two weeks before cleaning the film for the first time and never use hard objects (brush or blade) to clean it. Commercially available glass cleaners can be used.

FAQ`s about the installation

Can I carry out the film installation alone?

Films that are no larger than 1m² can be installed alone without any problems.
For larger pieces, it is recommended that two people carry out the installation. This makes it easier to handle the film and place it on the pane.

How can I avoid dust inclusions under the adhesive back side?

First, clean your windows really thoroughly with glass cleaner. Then go over the entire window pane again with our supplied Glass scraper blade to remove any hard-core impurities on the pane (such as fly droppings). These fine stains are often invisible to the naked eye and you will be amazed at what the blade still removes.

In addition, do not lay the Adhesive foils after peeling off (covers the adhesive side for transport) on the floor to get it wet. Rather, pull a table nearby to spray the film on. On the floor you will always stir up very fine dust particles, which will then settle on the adhesive side facing upwards. These dust particles can later show up on the pane under the Adhesive foils, which is something to avoid.

Can I apply the Adhesive foils without transfer concentrate?

Alternatively, you should at least use a pH-neutral cleaner. We do not recommend installation without any additive at all, which increases the gliding properties of the water!

We strongly advise against the use of water diluted with detergent. This can lead to streaking due to a reaction with the film adhesive.

Does the film have to be applied perfectly to the glass at the first attempt?

No, this is not necessary. The moisture makes it easy to move the film and position it precisely. Unlike self-adhesive films, you can always remove and reapply this adhesive film.

How easy is it to remove the film?

The window film itself can be easily removed. To do this, detach one corner and pull the film off the glass at as flat an angle as possible. No impurities will remain on the pane!
Order a product sample...

We will be happy to send you a free sample of this and up to four other films without obligation.
The samples are approx. 9 x 9 cm in size and will be sent to you free of charge and without obligation by letter post.

1. select sample (max. 5 pieces)
Adhesive film, splinter optics (embossed) Adhesive film, splinter optics (embossed)
Art.-Nr. 281560
Please select at least one sample!
2. Specify shipping address
Flat, floor, etc. (optional)
Germany
Here you can find our privacy policy.
Thank you very much!
We have received your foil requests.
The samples are usually sent to you within one working day.
Customer service

Foil expert Martin Siegel - Managing Director

» Do you have any questions about this item? I'm happy to help!«
