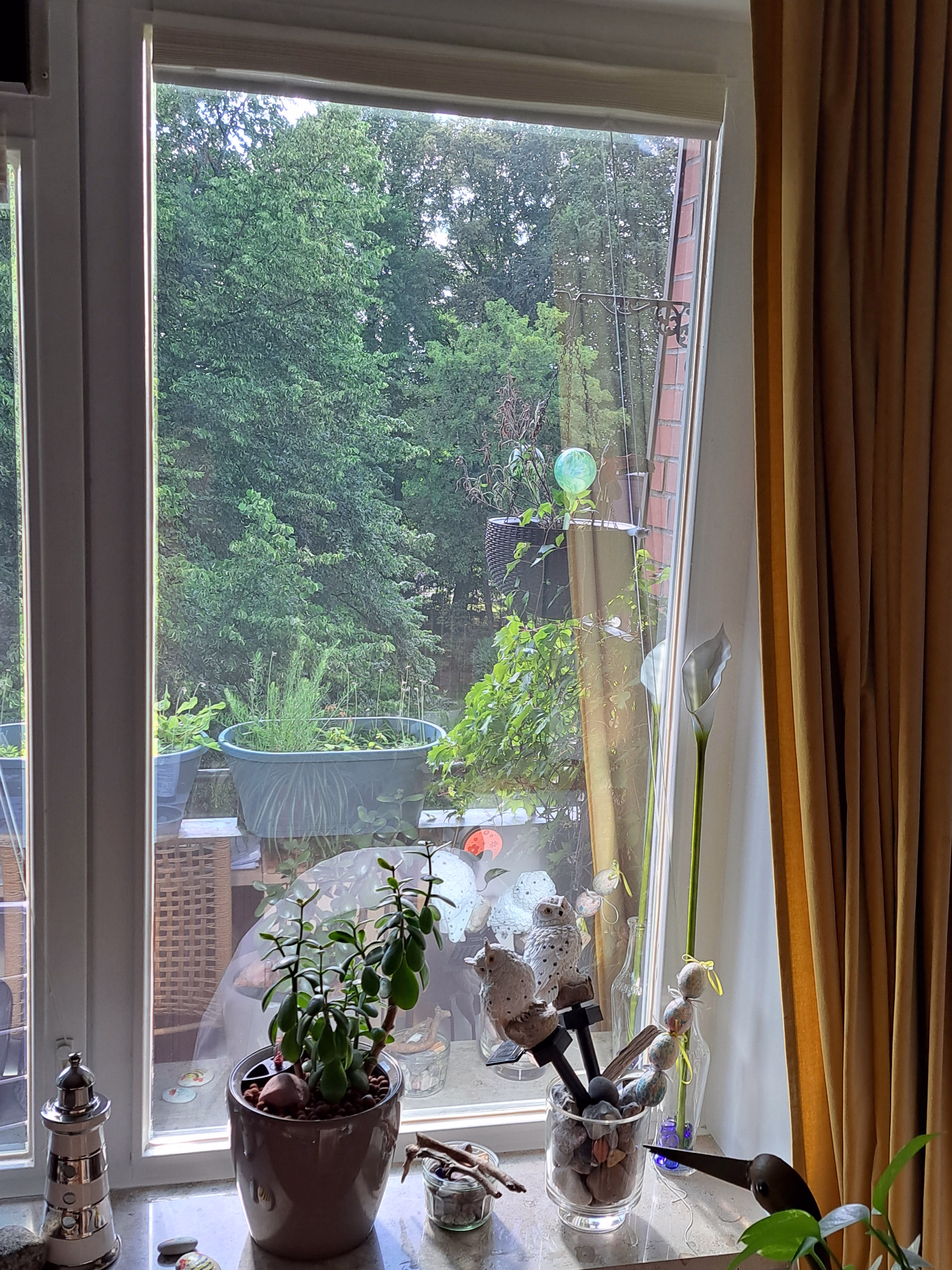

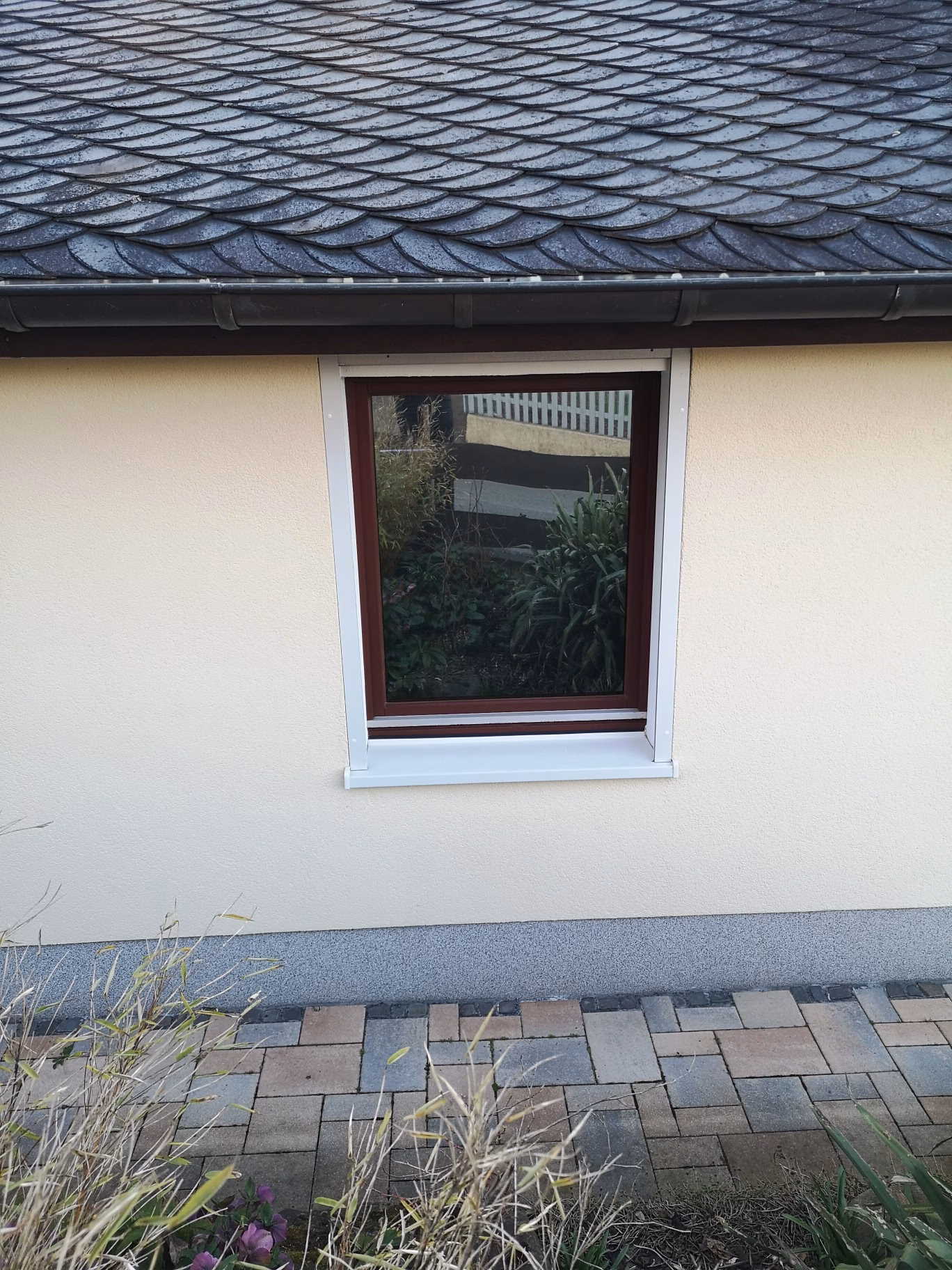

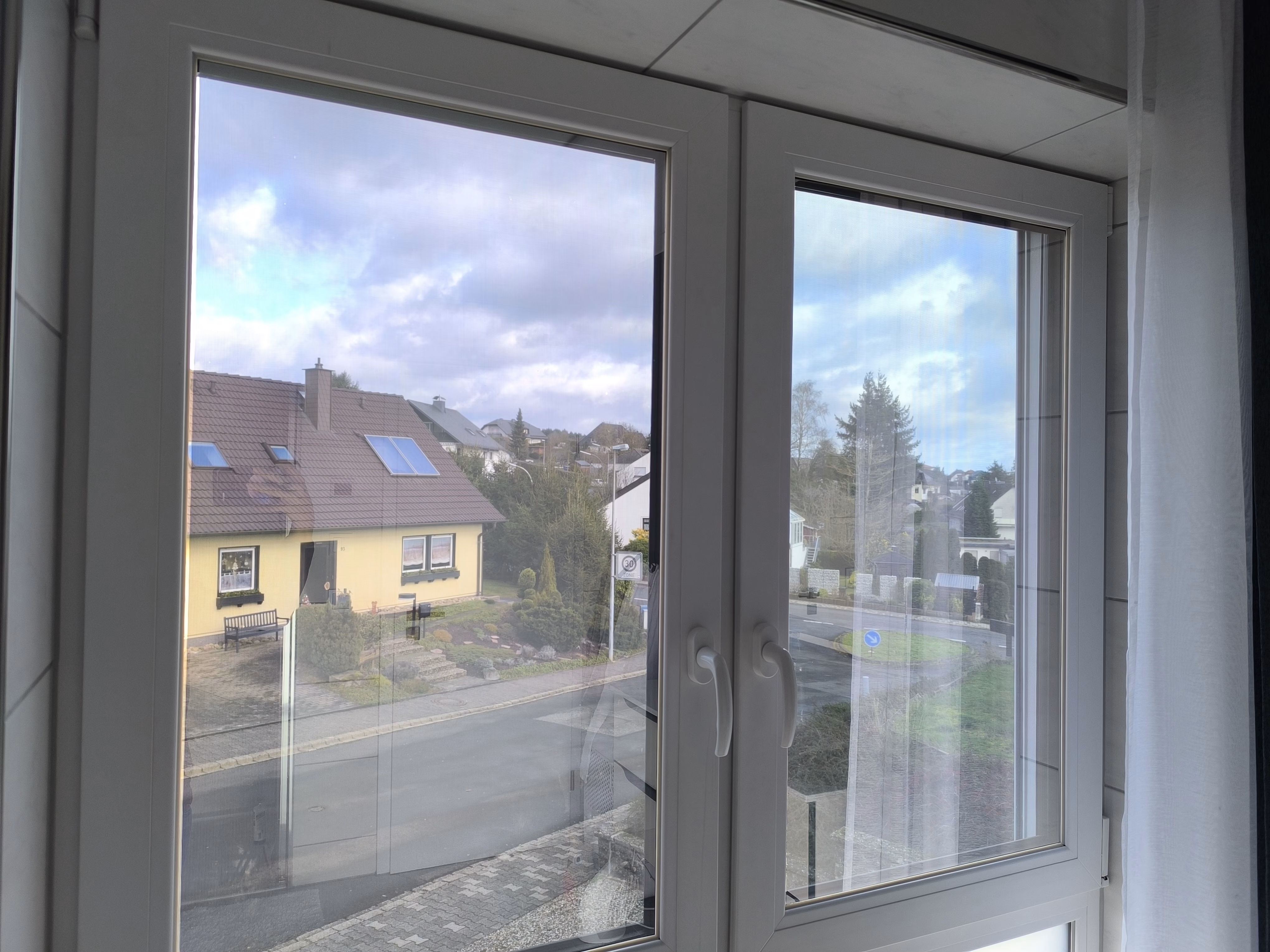

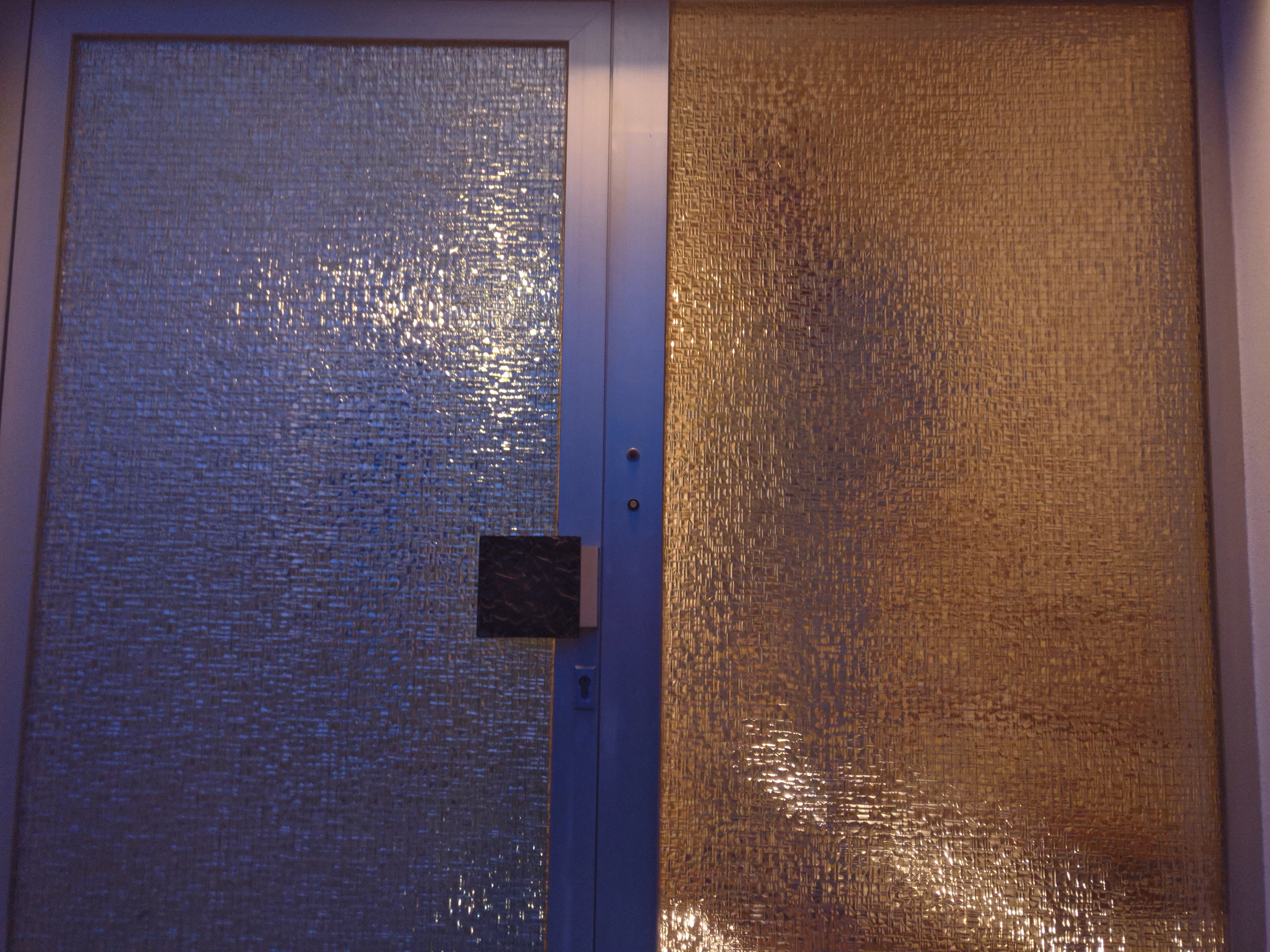

Insulating film, dark silver mirrored

  • Indoor assembly
  • self-adhesive
Isolierfolie, silber verspiegelt
Montagevideo starten
Insulating film, dark silver mirrored
Geometry Linear metre
Rectangle
Square
Pentagon with slope
Rectangle with bevel
Rectangle with two slopes
symmetric trapezoid
right triangle
symmetrical triangle
Gable window
Rectangle with segmental arch
Rectangle with basket arch
Rectangle with semicircle
Quarter circle
Circle
Semicircle
Circle section
Oval / Ellipse
Available in the dimensions:
min. 5,0 x 5,0 cm
max. 150 x 3.050,0 cm
Width [cm]
Height [cm]
Cutting possible on request
Unfortunately, your desired size cannot be ordered via the online shop. However, we can still offer you the dimensions. Please ask our customer service at info@velken.shop.
from €1.31

Price per m² from: €49.90 Price per m²: €44.91 Price per m²: €49.90 incl. VAT plus shipping costs. Item no. 171030

Order accessories directly

This assembly set is suitable for smaller foil assemblies of up to 6m². In the set price you save over 15% compared to the individual components.

Mounting set
€8.95

This assembly set is ideal for medium-sized film installations of 5-10 m². With this bundle you save almost 23% compared to the individual components.

Assembly set professional
€14.95

The ideal care cloth for drying and polishing our films and additionally many other types of glass such as panes, mirrors and much more!

Foil polishing cloth
€4.95

Delivery time approx. 1-4 days

CNC cutting accurate to the millimetre

free assembly tool

Properties of this film
Privacy screen
high
Sun protection
very high (> 75%)
Glare reduction
high
Property
mirrored
UV protection
with (> 99%)
Mounting side
Indoor assembly
Liability
self-adhesive
Protection from
Cold
Questionst?
Start WhatsApp chat
Keeping the cold out [OS_SUBTMPL:article/description_break_glass.html] With this...

Keeping the cold out

To avoid glass breakage, it is imperative that you follow our installation recommendations in the product data section.

With this energy-saving and cold-protection film, heat loss can be reduced by up to 24%. Heating costs are reduced and so are CO2 emissions. The view through the window is still clear, but you may lose noticeable daylight due to the strong reflection of the window film.

How much daylight you lose through this all-season film always depends on the conditions on your premises:

  • If you have a room with large window fronts that is naturally flooded with light, then the film on the window pane will not be noticeably noticeable.
  • It is different with a large room that has only one small window and is therefore rather dark even without the film. Here, the insulating film already has a noticeable effect, you have to reckon with approx. 20-30% loss of light.

If you can do without the very good sun protection in summer (58% energy rejection), the only slightly tinted insulating film Art. No. 171005 is a very good alternative.

Energy saving function

  • This film has a special coating that reflects the infrared rays that are in every heated room and want to pass through your window pane to the outside. This prevents the heat from being drawn outwards. In addition, the perceived coldness near the window disappears when you hold your hand in front of it. The heat reflection into the room is 24%.
  • Another effect is that the dew point on your window pane is lowered. If, for example, your window pane starts to get damp at +1°C without the film, the dew point shifts downwards by -2 to -3°C when the cold protection film is installed. The pane would therefore only start to sweat at approx. -2°C. This temporarily saves you having to wipe the windows in the morning.

This film is used wherever, in addition to winter heat loss and summer heat protection, the appearance of the building should not or must not be noticeably changed (museums or buildings that are listed).

The solar radiation is reduced by this energy-saving and cold protection film. Thus, the rejection of the total solar energy (reduced radiation on the glass) is 80% with the film for interior installation.
In addition, there is the enormously high UV protection of about 99%. This reduces the heating of the rooms, the indoor climate becomes more pleasant, the energy costs for the air conditioning are reduced, the fading of furniture and carpets is reduced and the building does not experience any visual change.

Explanation of the sun protection function

  • This insulating film lets the sun's rays into the room in winter, but does not let them through in summer. Since the sun is lower in winter than in summer, the sun's rays hit the film at a different angle. The coating is designed in such a way that the sun's rays are transmitted at a shallow angle and steeply incoming rays are reflected.

The scratch-resistant surface of the sun protection film makes it easy to clean with standard glass cleaners. It is dirt-repellent and easy to clean.

Not suitable for roof windows

This insulating film should not be installed on a skylight because of the necessary internal mounting. For windows that are tilted towards the sun, we recommend a silver mirrored sun protection film for external mounting.

Care instructions

Please do not clean the film for at least one month after installation and please do not apply any glue or stickers to the film. To prevent possible oxidation of the metal alloy, it is imperative to use our edge sealing pen at the corners of the film after installation.

Included in delivery

You should definitely order the transfer concentrate, art. no. 020010 additionally. It makes the installation easier and leads to a better result. Alternatively, you can also use a pH-neutral cleaner. This must be pH-neutral to prevent streaks from forming together with the film adhesive!

Any offcuts are not included in the scope of delivery.

Available downloads
Technical data and information at a glance...

Manufacturer's guarantee

The manufacturer provides a 5-year guarantee on this cold and energy-saving film for vertical installation and for sloped glazing (skylights) from a roof slope of 25°. This guarantee covers flaking, yellowing and demetallisation of the film.

Durability

Depending on various factors, the durability of the films is up to 8 years in Central Europe. In the case of sloped glazing such as skylights with a roof pitch of 25° or more, this durability is reduced accordingly due to the stronger solar radiation and the higher exposure to environmental influences.

PropertiesInterior installation
Light Reflection Indoor 63%
Outdoor 56%
Transmission 17%
Solar Reflection 51%
Absorption 37%
Transmission 12%
Shading coefficient 0,24
Heat transfer coefficient (U-value) 0,79
Total energy transmittance (g-value) 0,20
Emissivity 0,39
UV reduction 99%
Glare reduction 81%
Heat rejection (inside) 24%
Total energy rejection (exterior) 80%

Erklärung von Lichttransmission, Reflexion, Absorbtion

The values of the properties were determined by the film manufacturer. They have been calculated on 3 mm glass using the appropriate methodology and are subject to variations in process conditions in industrial production. They are for estimation purposes only.

Technical data
Material Polyester film
Film thickness approx. 50 µm
Adhesive Pressure sensitive adhesive system

Mounting recommendation

Based on technical data and extensive experience, we can recommend mounting on the following vertically installed glass types:

Glass typeNumber of
panes
mainly
installed
U-value
W/(m²K)
Interior
installation
Single glazing 1 (-fold) until 1978 5,7 - 5,8 yes
Double glazing 2 (-fold)
2 (-fold)
3 (-fold)
1978 - 1994
1995 - Today
1978 - 1994
3.0 - 3.4
1.2 - 2.5
2.1 - 2.4
yes
no
no
Thermal insulation glazing 2 (-fold)
3 (-fold)
1978 - 1994
1995 - Today
1.7 - 2.1
0.4 - 1.4
no
no
Solar control glazing 2 (-fold)
2 (-fold)
3 (-fold)
1978 - 1994
1995 - Today
1995 - Today
1.4 - 2.0
1.0 - 2.5
0.5 - 1.3
no
no
no

[OS_SUBTMPL:article/product_data_installation_recommendation2.html]

This film is not suitable for sloped glazing (e.g. skylights) as there is a high risk of glass breakage.

These recommendations may still result in glass breakage due to various factors at the installation site. According to our AGB, §10 paragraph 3 we do not accept any liability for this.

Answers to the most frequently asked questions...

General questions

Can I get a free foil sample?

Of course, please click on this link to access the corresponding order form. You are welcome to add to the list of items if you wish. There are no costs for you!

Will you also cut the film for me?

We cut each film to the exact millimetre according to the dimensions you enter. The cutting is free of charge. You can find detailed instructions on how to measure your panes here.

Alternatively, you can also cut your film by hand with a cutter knife. However, this requires a little manual skill, so you are usually better off using our free service.

Can you also cut a round blank or other geometry?

In general, almost all 2D shapes can be produced. Many geometries (e.g. triangles, trapezoids, circles) can be ordered directly via the online shop. To do so, please click on the orange rectangle to the right of the article image. You can then choose between many different shapes.

For shapes that are not specified, please send us a small sketch (photo) in which you specify the side lengths, radii or angles. Please contact us for this purpose.

Does the film also adhere to surfaces other than glass?

The window film adheres to all surfaces that are approximately as smooth as glass. When applying the film to plastic, please bear in mind that the adhesive may bond with the plastic, making it impossible to remove the film cleanly later.

How can I clean my window pane with the film in place?

You can keep your window pane clean as usual. The film should not be rubbed with sharp-edged objects (e.g. a brush).
You can find more information in our guide General care instructions for window films.

Can the film be removed without leaving any residue?

All window films can be removed without leaving any residue and without damaging the glass surface!
Below you will find detailed instructions on how to remove old window films.

Can you also print on films?

Unfortunately, we do not currently offer foil printing and do not have any partner companies with whom we can realise foil printing.

How to mount this film on the window...
Start assembly video
Installation video for window films. Click on the picture to start.

Assembly instructions for Insulating films (self-adhesive)

You will need the following items

Installation tips

  • Two people should carry out the installation!
  • Do not install any film at temperatures on the installation side below +6° C.
  1. Fill the spray bottle with 0.5 litres of water and add the transfer concentrate (30 ml) (enough for approx. 6 to 7 m² of glass surface).
  2. Thoroughly clean the glass with commercial or our glass cleaner!
    Remove all sticky particles (e.g. paint or fly dirt) preferably with the Glass scraper blade. No dirt residues should remain on the glass!
  3. The sandblasting foil consists of the mostly white backing paper and the actual sandblasting foil.
    Now place the sandblasting foil with the view side down on the glass pane or similar. You are now looking at the back of the film.
    Then carefully and slowly peel off the backing paper at as shallow an angle as possible until it is about halfway along the entire length of the film. Cut the backing paper and stick it back onto the sandblasting film with a gap of about 2 cm to the remaining backing paper.
  4. Now hold the Insulating foils in place while the 2nd person starting from the corner, and at the same time spray the adhesive side of the Insulating foils that is now exposed with the liquid.
    Afterwards, the glass pane (surface to be pasted) must be sprayed with the liquid. Do not be sparing with the liquid, the film and pane should be well wet.
  5. Place the Insulating foils on the glass, the film should slide back and forth well, otherwise spray the glass again.
  6. Now spray the other side of the Insulating foils as well, this will make it easier for you to work with the mounting squeegee.
  7. Now press the liquid out evenly with the mounting squeegee from the centre to the right and to the left. Make sure that there is no residual water left under the film! Repeat this procedure several times to remove even invisible water residues. When doing this, wrap the supplied squeegee with a paper towel to avoid any scratches.
  8. Carefully wipe the edges and the foil with a soft cloth. If necessary, press the edges again with the mounting squeegee.
  9. Now let the Insulating foils dry for three days without touching it.
  10. Wait two weeks before cleaning the film for the first time and never use hard objects (brush or blade) to clean it. Commercially available glass cleaners can be used.

FAQ`s about the installation

Can I carry out the film installation alone?

Films that are no larger than 1m² can be installed alone without any problems.
For larger pieces, it is recommended that two people carry out the installation. This makes it easier to handle the film and place it on the pane.

How can I avoid dust inclusions under the adhesive back side?

First, clean your windows really thoroughly with glass cleaner. Then go over the entire window pane again with our supplied Glass scraper blade to remove any hard-core impurities on the pane (such as fly droppings). These fine stains are often invisible to the naked eye and you will be amazed at what the blade still removes.

In addition, do not lay the Insulating foils after peeling off (covers the adhesive side for transport) on the floor to get it wet. Rather, pull a table nearby to spray the film on. On the floor you will always stir up very fine dust particles, which will then settle on the adhesive side facing upwards. These dust particles can later show up on the pane under the Insulating foils, which is something to avoid.

Can I apply the Insulating foils without transfer concentrate?

Alternatively, you should at least use a pH-neutral cleaner. We do not recommend installation without any additive at all, which increases the gliding properties of the water!

We strongly advise against the use of water diluted with detergent. This can lead to streaking due to a reaction with the film adhesive.

Does the film have to be applied perfectly to the glass at the first attempt?

No, this is not necessary as long as you have sprayed the adhesive side of the window film and your glass sufficiently wet. Due to the moisture, the adhesive has no adhesive effect, which makes it easy to move the film and position it precisely. It is even possible to remove the film from the glass again and reapply it.

After mounting, small bubbles formed the next day

The bubbles consist of residual liquid that was not pressed out from under the film when it was applied. Over time, these run down between the already drying film adhesive as far as they can under the film and collect in some places. The bubbles disappear by themselves when the remaining liquid diffuses through the film to the outside. Depending on the outside temperature and sunlight, this can take up to three or more weeks before the film fits like a second skin.

In any case, you should wait this time and do nothing. In most cases, the blisters disappear all by themselves!

How easy is it to remove the film?

The window film itself can be easily removed. To do this, detach one corner and fold it over directly. The film can then be removed from the glass at as flat an angle as possible.

It is possible that residues of the film adhesive remain in some places. These can be soaked with our adhesive remover or acetone and then removed again with a glass scraper or ceramic field scraper. You will find detailed instructions on how to remove window films on our homepage in the FAQ`s.
Order a product sample...

We will be happy to send you a free sample of this and up to four other films without obligation.
The samples are approx. 9 x 9 cm in size and will be sent to you free of charge and without obligation by letter post.

1. select sample (max. 5 pieces)
Insulating film, dark silver mirrored Insulating film, dark silver mirrored
Art.-Nr. 171030
Please select at least one sample!
2. Specify shipping address
Flat, floor, etc. (optional)
Germany
Here you can find our privacy policy.
Thank you very much!
We have received your foil requests.
The samples are usually sent to you within one working day.

Determine your energy saving potential

With the help of our energy saving calculator, you can work out your supposed savings per year by using an energy saving foil.
Germany

Savings in the year

Please note that the results shown are only a model calculation and may differ from your actual savings. For example, your insulation of the walls is not taken into account.
Customer service

Film specialist, Dirk Bilstein - Application engineer

" I will be happy to give you expert advice on choosing the right film! "

Compare articles
Sun protection
Thermal insulation
Light transmission
Light transmission
Glare reduction
Property
Colour
UV protection - percent
Mounting side
Durability
Isolierfolie, silber verspiegelt
Insulating film, dark silver mirrored
€49.90 / m²
very high (> 75%)
33%
16%
low
high
mirrored
silver
99%
Indoor assembly
10 years (indoor installation)

Assembly instructions

Montagevideo starten
Installation video for window films. Click on the image to start.

Tool for easy assembly

The tool sets and accessories offered by Velken will be very useful for the success of your installation! Adhesive films, electrostatic films, decorative coatings... for each product there is the appropriate tool.

In addition to the assembly video, take a look at the detailed assembly instructions.

- 25 %
Assembly set professional
This assembly set is ideal for medium-sized film installations of 5-10 m². With this bundle you save almost 23% compared to the individual components.
040020 - Assembly set professional
€20.20 €14.95
Insulating film, silver medium mirrored
  • Indoor assembly
  • self-adhesive
Thermal insulation
Sun protection
Light transmission
Glare reduction
€69.90 / m²
- 25 %
Assembly set professional
Assembly set professional
€20.20 €14.95
- 27 %
Ein Montageset mit Sprühflasche, Filzrakel und Transferkonzentrat für perfekte Ergebnisse.
Mounting set
€12.30 €8.95
- 28 %
Premium mounting set
Premium mounting set
€49.15 €34.90
- 13 %
Edge sealing set
Edge sealing set
€28.80 €24.90
Tafelfolie, schwarz zur Gestaltung einer eigenen Tafel
Blackboard film, black
€30.00 / m²
Sichtschutzfolie grau matt
Privacy film, matt grey
€23.90 / m²
- 25 %
Assembly set professional
Assembly set professional
€20.20 €14.95
- 27 %
Ein Montageset mit Sprühflasche, Filzrakel und Transferkonzentrat für perfekte Ergebnisse.
Mounting set
€12.30 €8.95
- 13 %
Edge sealing set
Edge sealing set
€28.80 €24.90
Questions about the item1
1 Question(s) in other languages.
Click here to view these question(s).
Question:
Ich habe eine Glasscheibe als Windschutz bei meiner Terasse angebracht. Könnte ich mit dieser Folie wenn ich sie innen anbringe erreichen das die Sonne nicht mehr so stark rein knallt?
Katrin F. am 16. January 2023
Answer:
Eine Isolierfolie ist in dem Fall nicht die richtige Wahl. Wir empfehlen Ihnen eine selbstklebende Sonnenschutzfolie dafür zu nutzen.
Velken Service-Team on 16. January 2023
Compose reply
  Ask new question
Your question will be publicly visible and can - in addition to our support - also be answered by a member of our community.
Reviews 0
Be the first to rate this article!
Write a review now!
Last viewed
